PLANS USED

Below (43 photos or more) are the original plans, that were originaly presented to council....and then played around with.....

The finished product was quite different to the original.....see photos....and the revised versions will be found on Plans Used 2

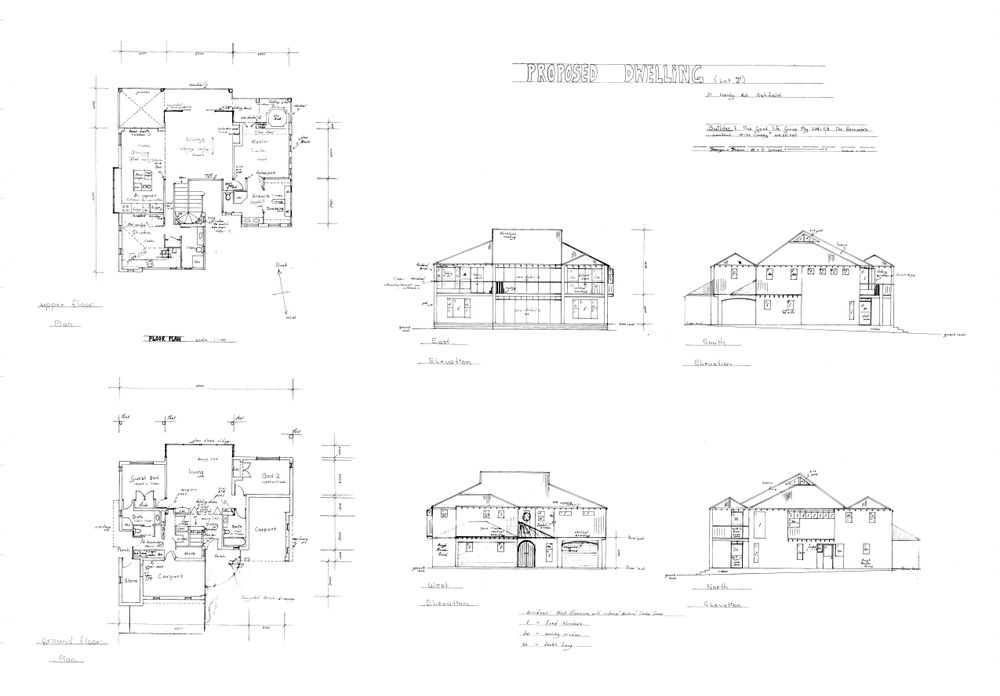

original........................proposed dwelling.....(below)

These 6 images directly below are the above plans, blown up for visual and measuring reference

Image below which is 15000 ......wide ....should be 15 centimeters wide on your ruler .....if it is .....then it is 1 to 100 scale (1millimeter = 100 millimeters).....or 15 centimeters on your ruler = 15 meters.....

NOTE ...... that the dimensions have slightly changed, as we travelled through the job, but have been made quite obvious to you ,and as you travel through this website, and the more correct information is also found in PLAN USED 2

NOTE.......These photos below, may appear jumbled, but will be in more correct order in PLANS USED 2

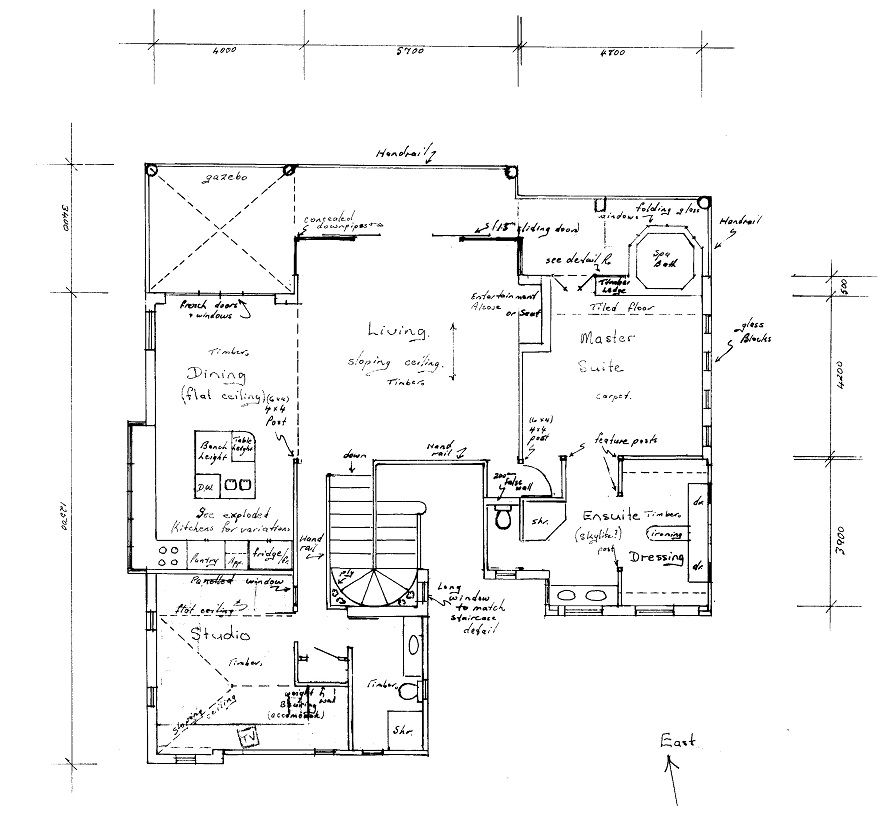

original...................................upstairs.......(below)

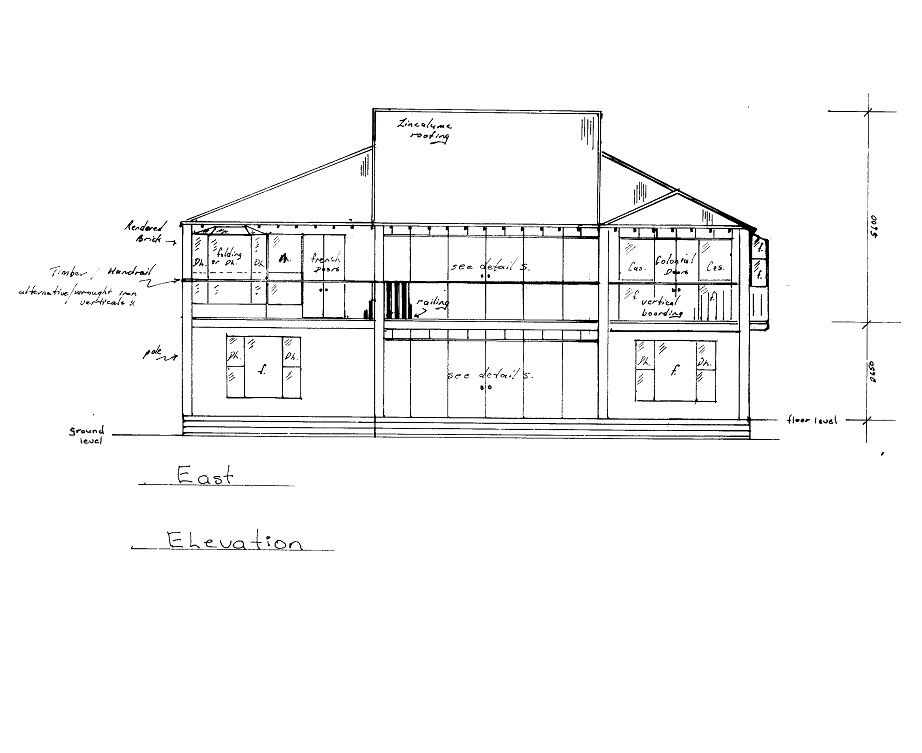

original....................................east elevation.......(below)

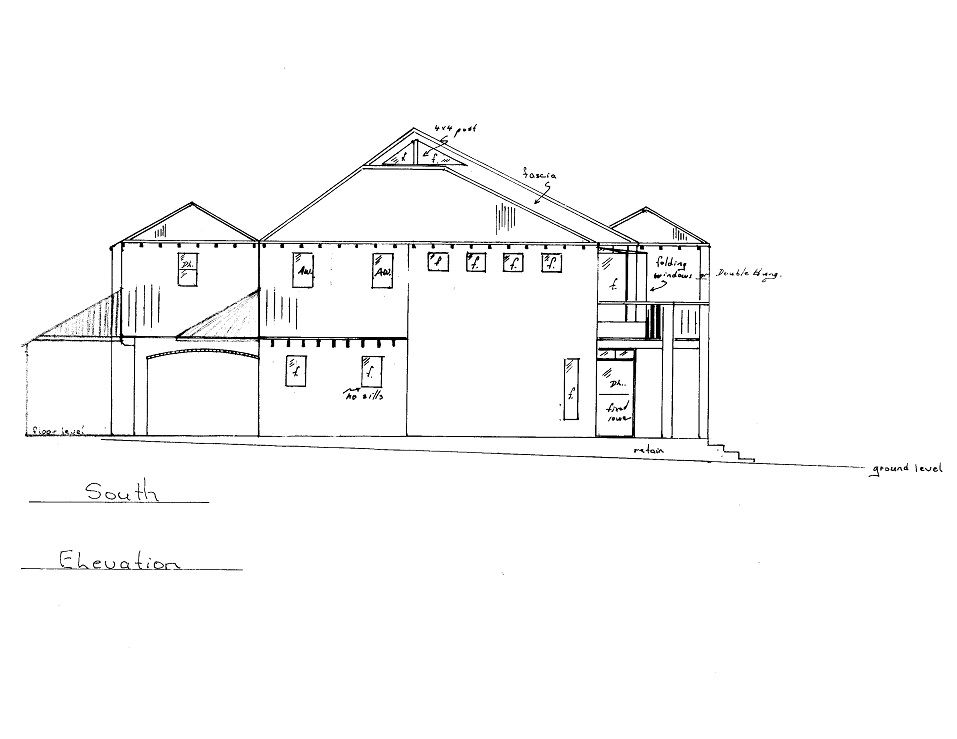

original.............................south elevation......(below)

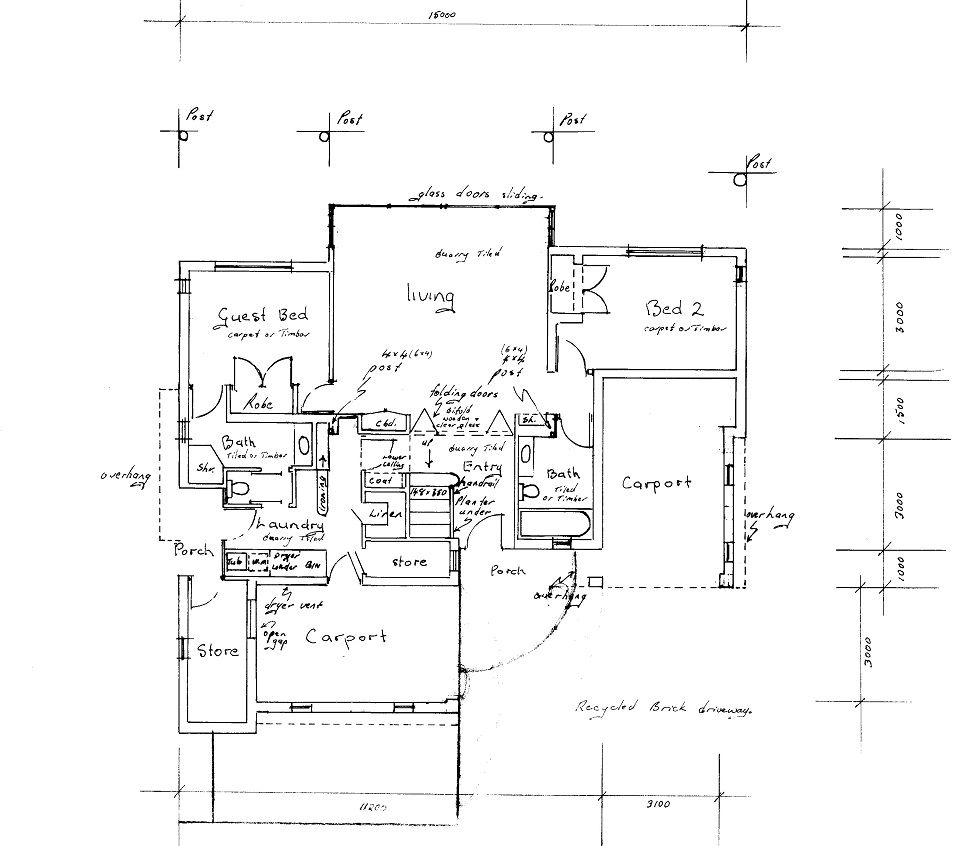

original..........................downstairs.......(below)

original.......front door area...dramically changed

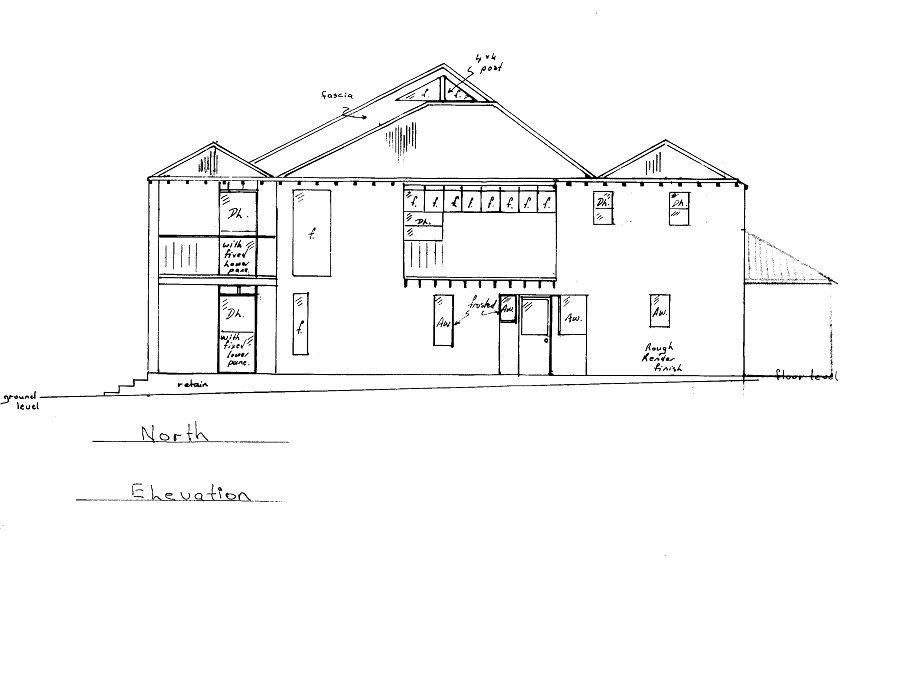

original........................north elevation........(below)

The above and below plans are the original plans presented to council....Plans Used 2 are a more correct revamped version for you

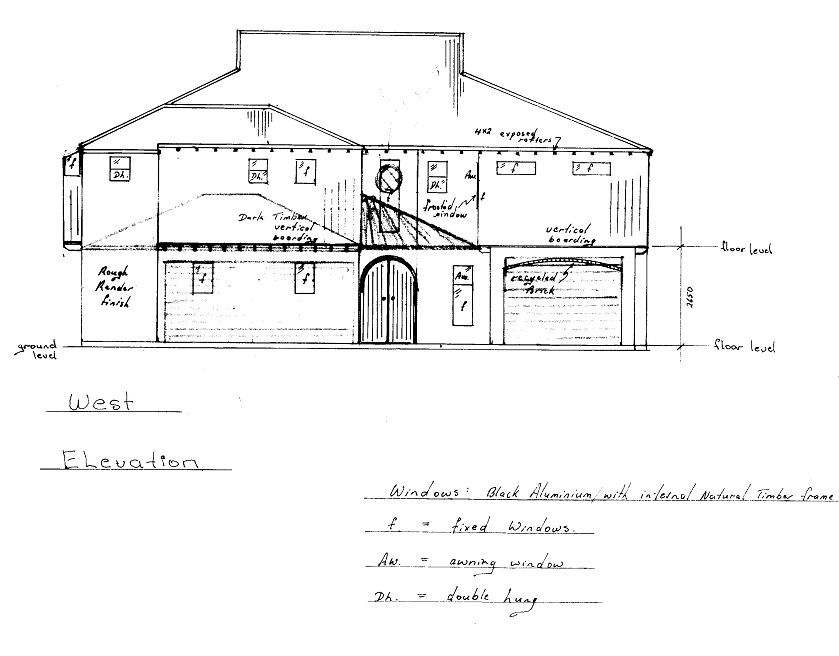

original....................various.....(below)

original...............plumbing...upper floor....(below)

original................roof framing details.....(below)

original......roof framing details...(below) detail 1 ..very top

original......roof framing details...(below) detail 2..see above

original...........roof framing details.......above kitchen ...profile aa

original................roofing details......(below)

originals..................various.......(below)

original......upper floor electrical......fill in yourself with your lekky

original ......ground floor electrical..fill in yourself with your lekky

original............bolts in concrete...... for posts...(below)

original.........concrete floor details.....(below)

original ........under floor blockwork and footings

original footings, and underfloor plumbing...(below)

footings and underfloor blockwork.....detail 1

original ..............floor joist detail.....(below)

original.........exchanged 250 x 50 timber bearer to steel rsj

original .....detail 1..... rsj.....(below)

original.....detail 2...joists over single garage

original.....blockwork.....shaded areas upper floor blockwork

original........footing blockwork and floor boxing

original.........concrete floor support and cavity

original.......west side footing.....and blockwork

deck conrete pour ....detail X

timber frame and ceiling detail q

main bed spa

proposed sliding doors

detail t

roof timber framework

near kitchen... see 3 above
