STAGE 10

Scroll to the bottom of page first, and let the page load, (takes 4 or 5 seconds) then come to the top again

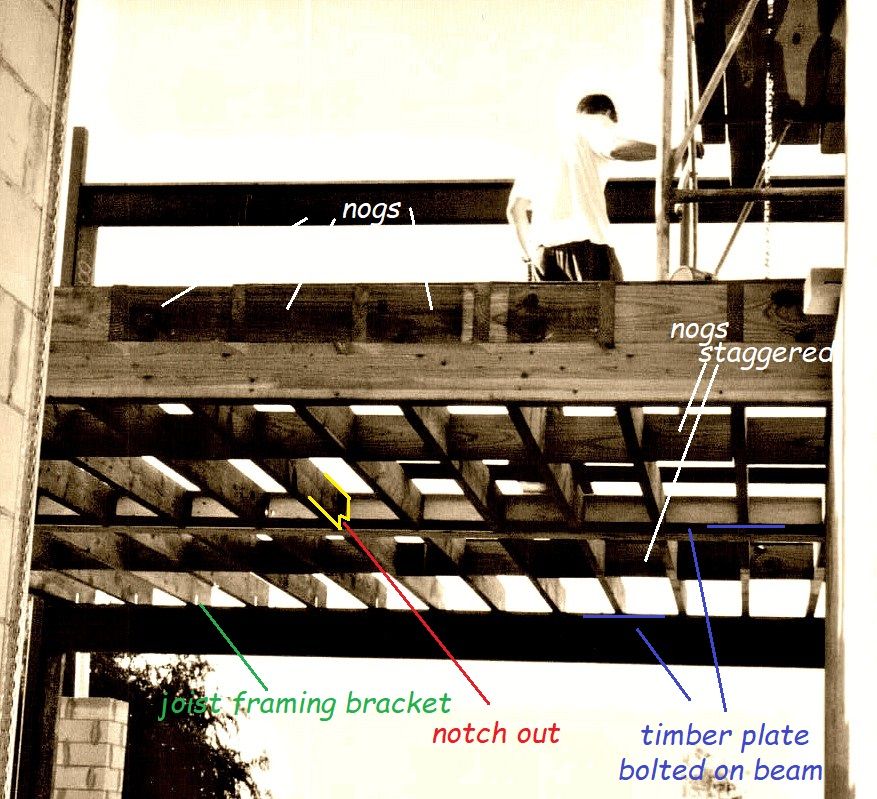

Now lets continue on with the floor joists (200mm by 50mm joists @ 400mm centres).......if you want to avoid sqeaky and moving timber in your house...use only galvanised nails.....this is why im'e not keen on nail guns, because most nail gun catridges use smooth finish nails (however you can buy galv nails for a nailgun, but they are still relatively smooth...and tend to move or pull out a  little)......find the knarliest rough galvanised nails that you can....use a hammer and you will avoid any movement...and always put one more nail than you need to. I built my house this way, and there was no movement anywhere

Where a plate or floor joist needs to be fixed to the wall....drill holes in blockwork......then dynabolt timber to the wall

This part of the construction requires you to be a bit adventurous and creative.....you may have to work some things out yourself

Remember to show the plans to your timber merchant (supplier)......tell him what you intend to do (even show him/her this website) and they will work out the quatities for you........dont get all your timber at once....they tend to buckle in the hot months (and youll be covering them with black plastic remember....and theres just you, not a team)....in the winter, storms hinder progress

If in doubt...ask your builder

and also, keep any soft (black or clear) plastic, for use later on on your pool

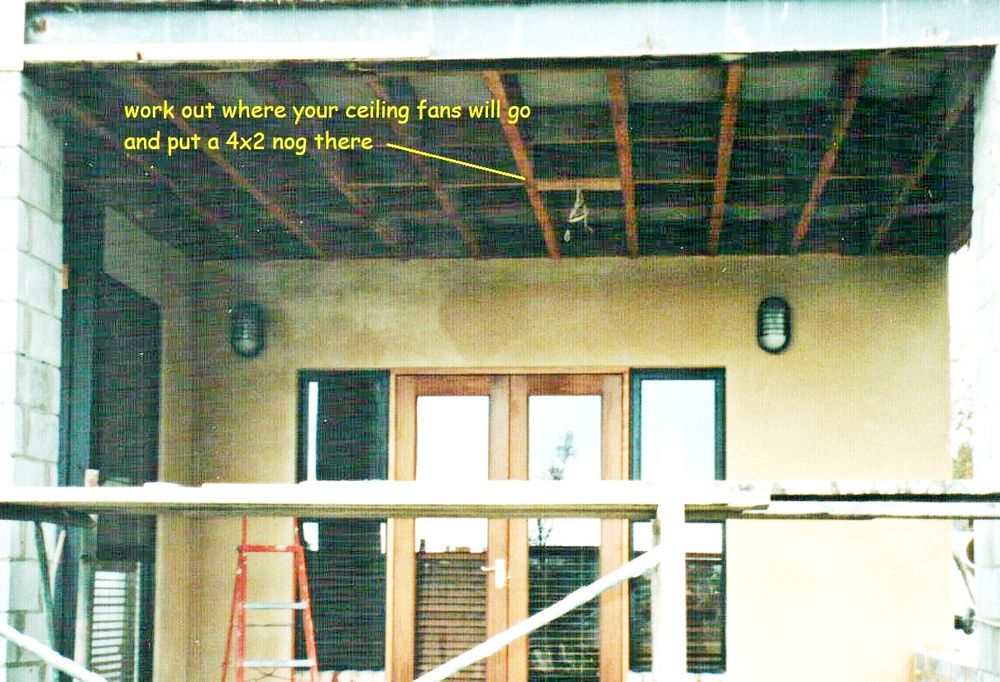

upstairs lounge...entry way

just to give you an idea

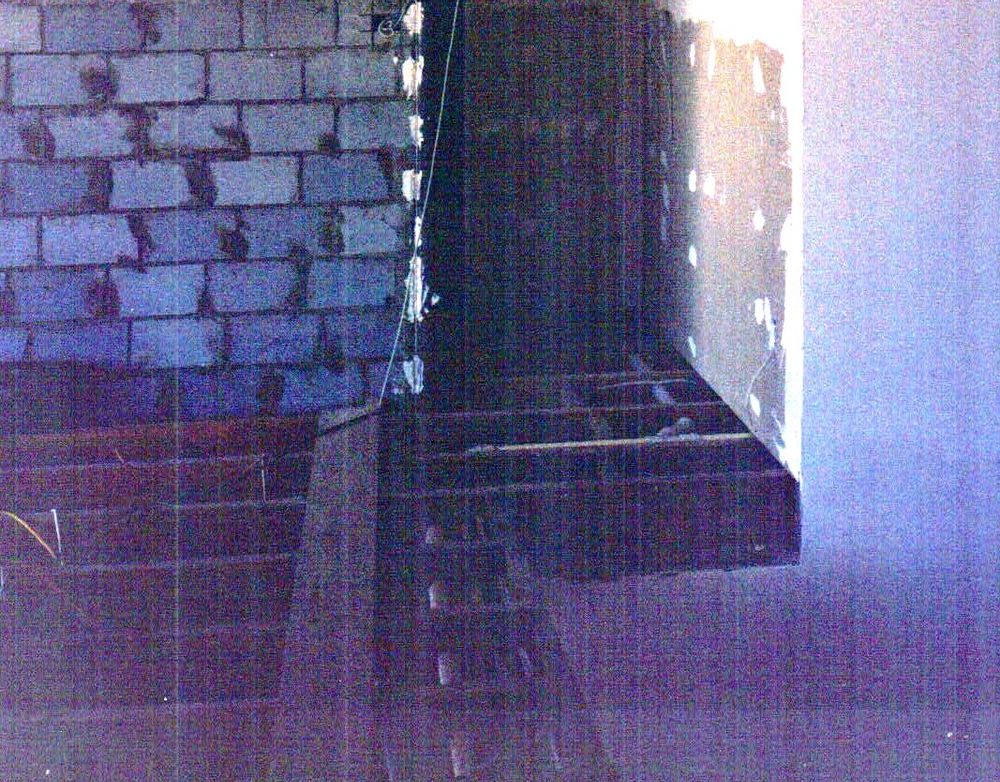

entryway below floor

STAIRCASE

Staircase is also found in stage 16...with emphasis on the balastrade (handrail) and finishing off

video to familiarise you with staircases

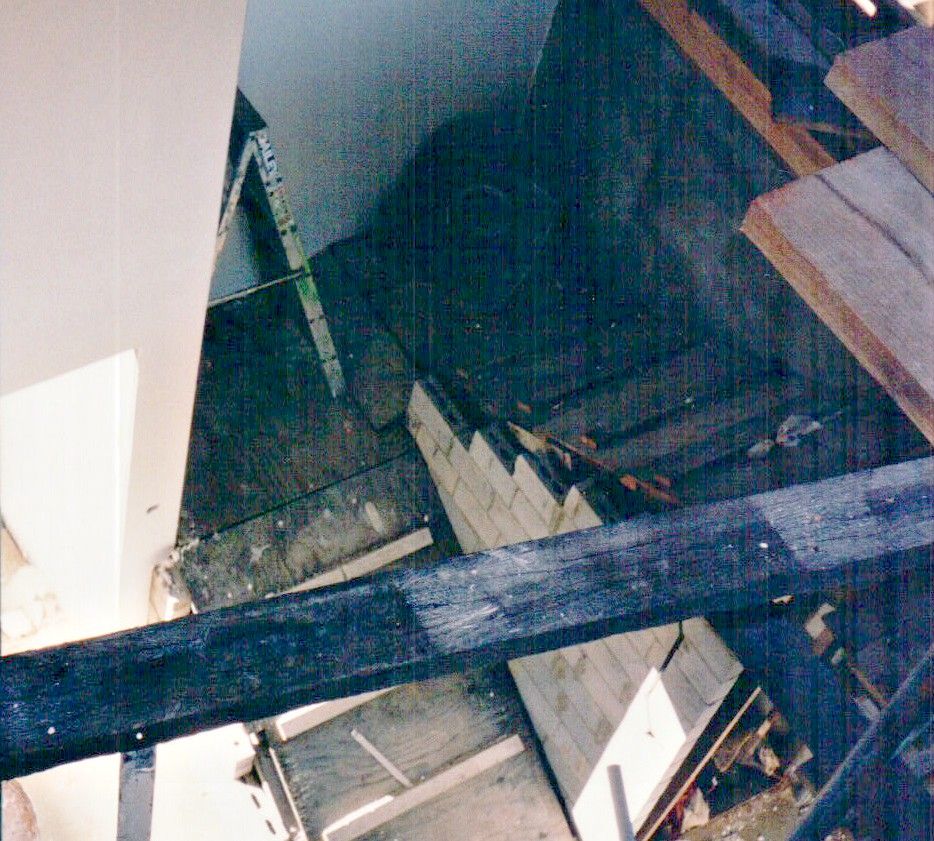

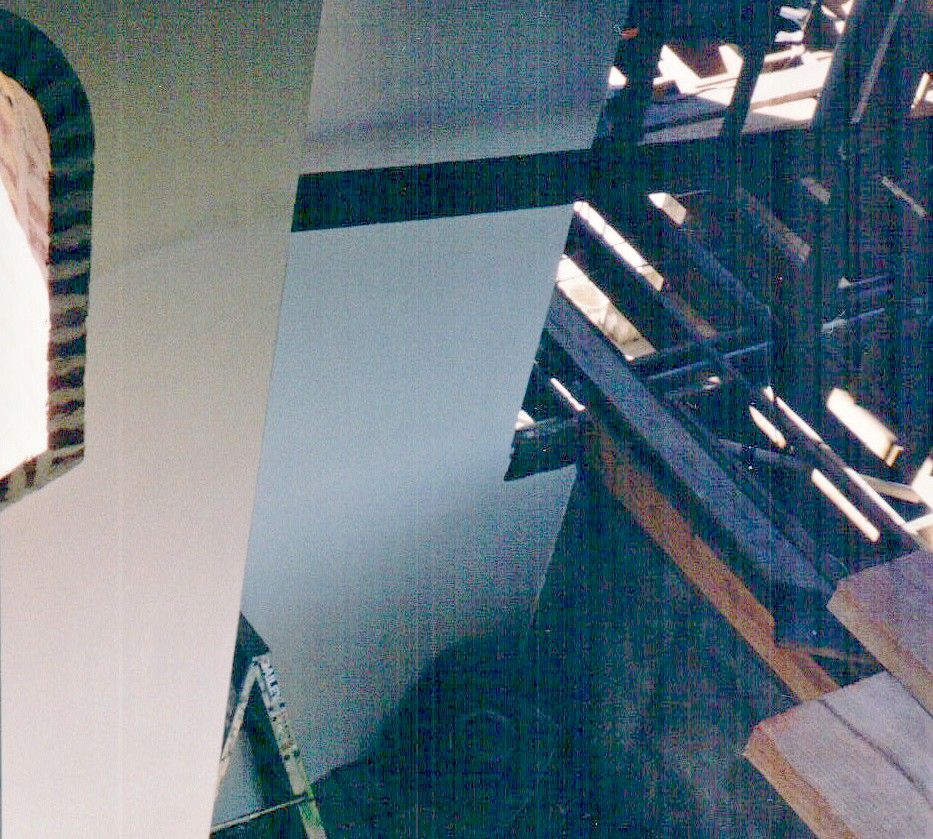

staircase area

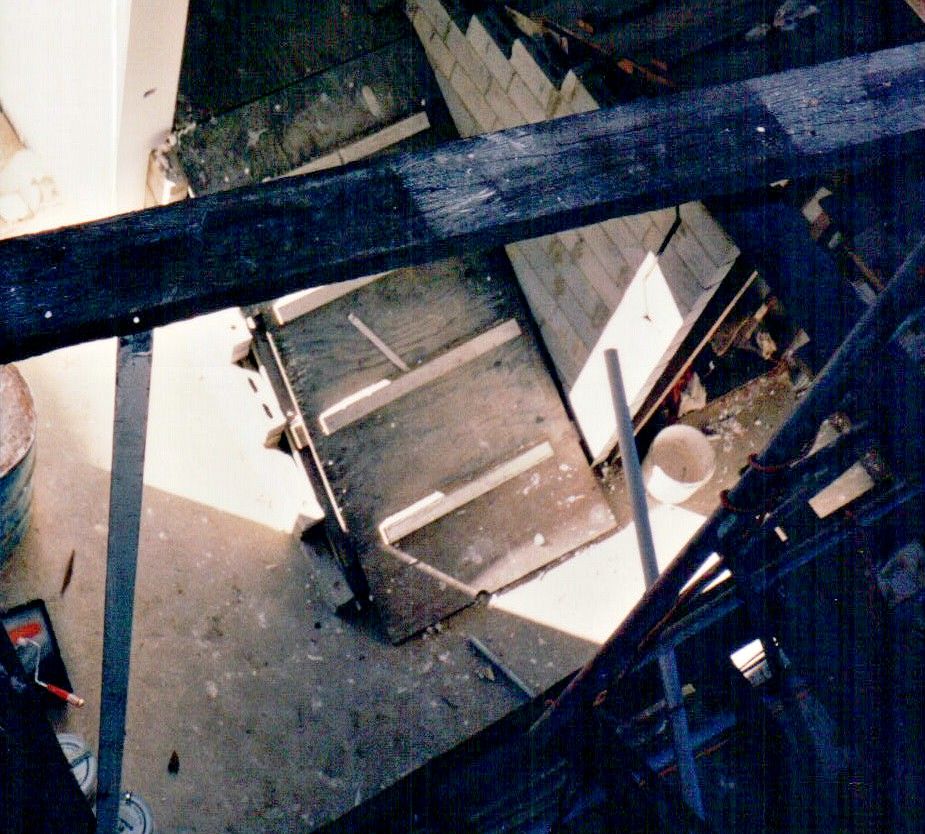

step treads are glued on.....blocks on top of tread for weight..dont let glue dribble down step face

not our staircase....but just gives you an idea

once again...not our stairs..but gives you an idea

vertical battens ramsetted on blockwork

insulation over battens then horizontal

original......blockwork slightly different, but joists the same

upstairs lounge

wetlands facing balcony

outdoor and indoor dining areas

kitchen island area

kitchen bench and island area

kitchen cholestory

notice support bar below false joists....for clarity see stage 20

finish blockwork around false joists

looking towards sunroom

sunroom

sunroom

sunroom...double garage

just an idea to show you framing, and window framing

master bedroom ensuite

ensuite and toilet doorway

walk-in robe

walk-in robe

spa area main bedroom
