STAGE 27

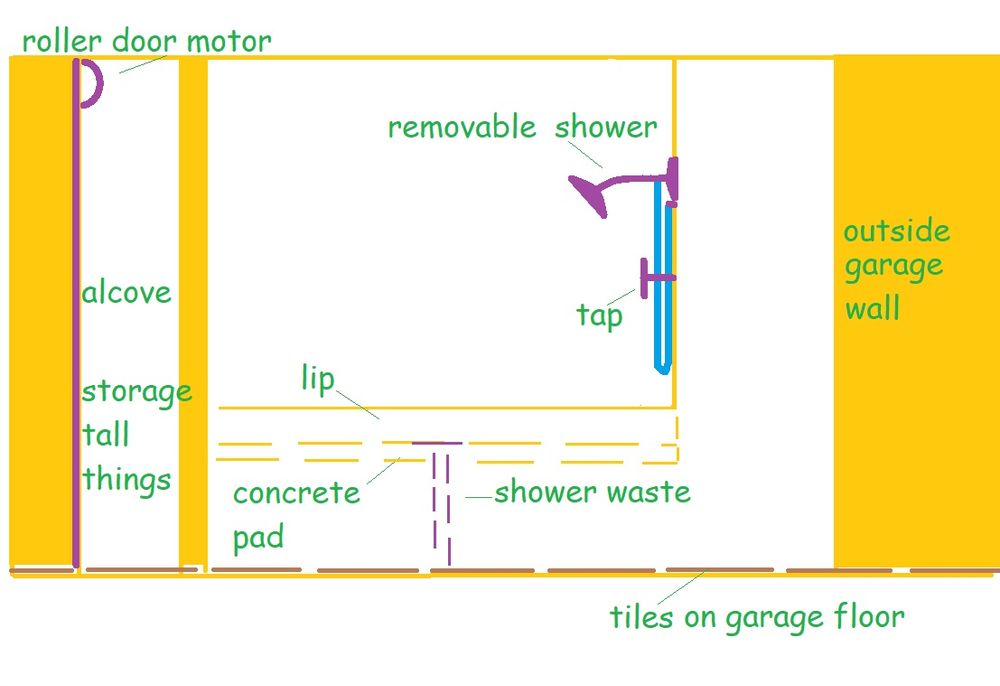

Dogbath....(shower)

Put bath (shower) concrete floor (2 inch thick, galvanised reinforced) waist height .......top of concrete slightly sloping to waste....very smooth finish with about a 3 inch lip to contain water (rendered brick)

Storage alcove to store long things......tiles right throughout both garages

dogbath

dogbath

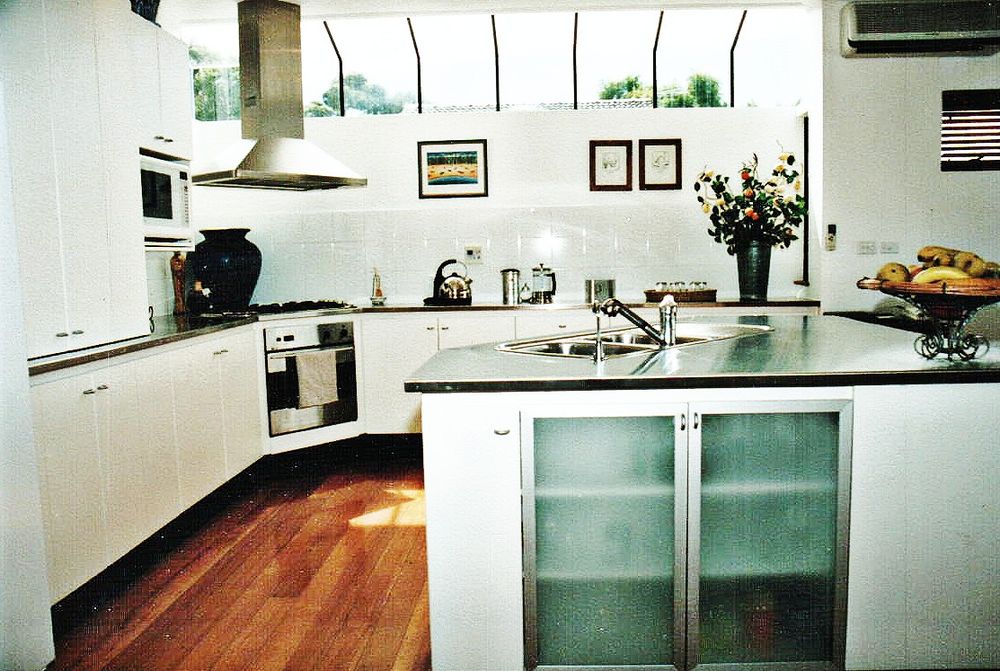

KITCHEN

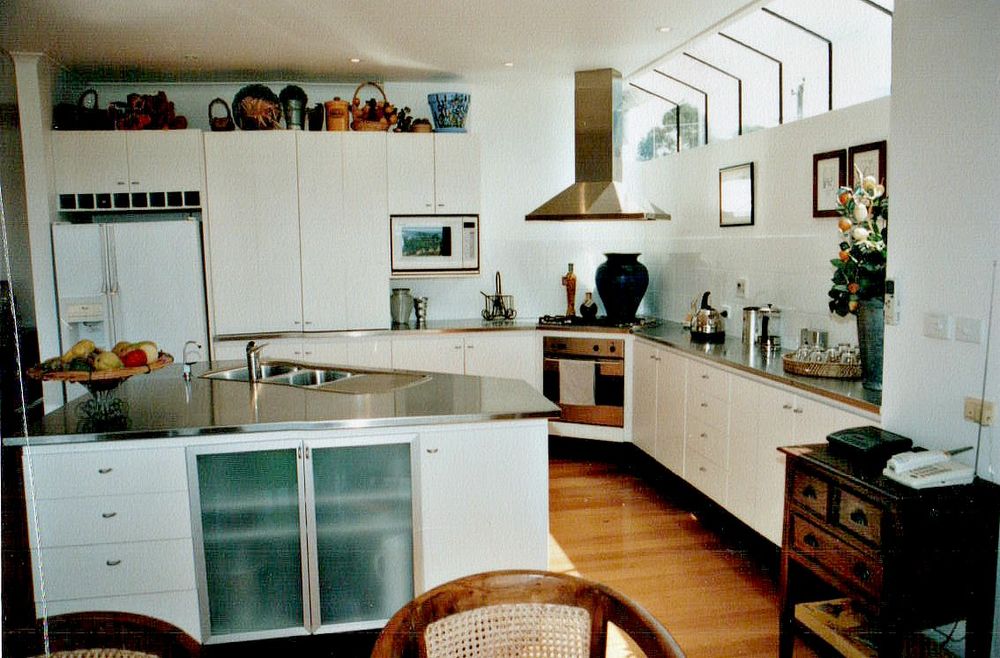

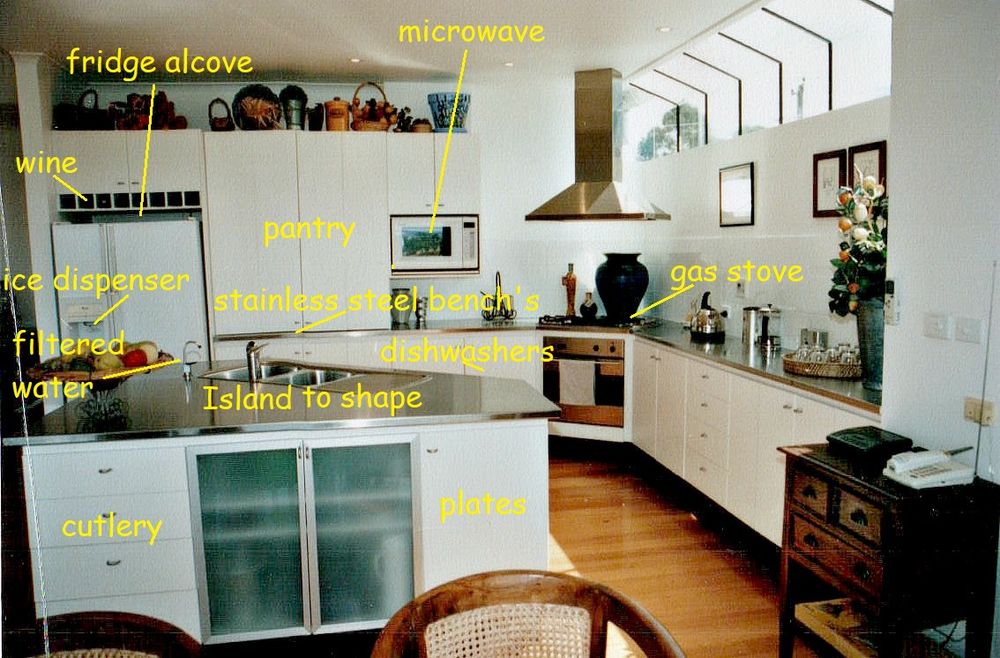

The kitchen will obviously be made to order....the 'L' shaped bench units with an island  bench in the middle....or make it fully or, partially yourself...like we did......to do it yourself, you need to have a little cabinet making experience.....or....................just....have a go!!

However, you will have to get your stainless steel benches made........if you want to use stainless steel of course

Buy your microwave and fridge and gas oven first, or at least know the dimensions before you construct the unit, .....or get the unit constructed

The fridge of course, will have an ice maker, and a cold water dispenser.........if you use a long flexable hose, or coiled copper pipe, you will be able to remove fridge outward ,with cold water hose still attached......there are various methods

The microwave is plugged in behind, with a flue above for heat extraction into the ceiling

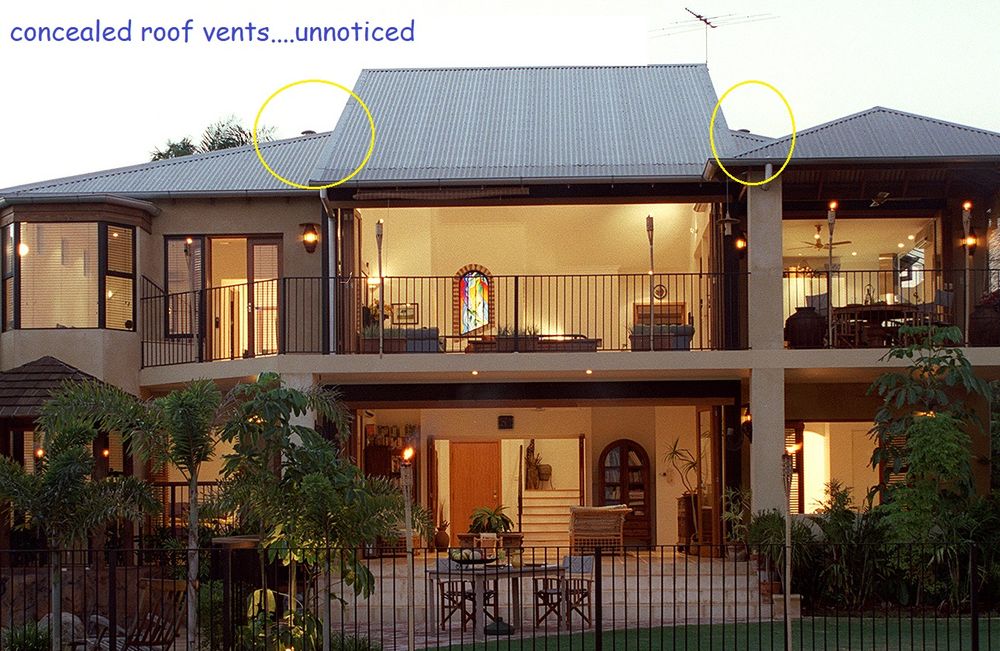

the ceilings on each side of the house will have a thru roof vent for heat extraction (see roof photo)

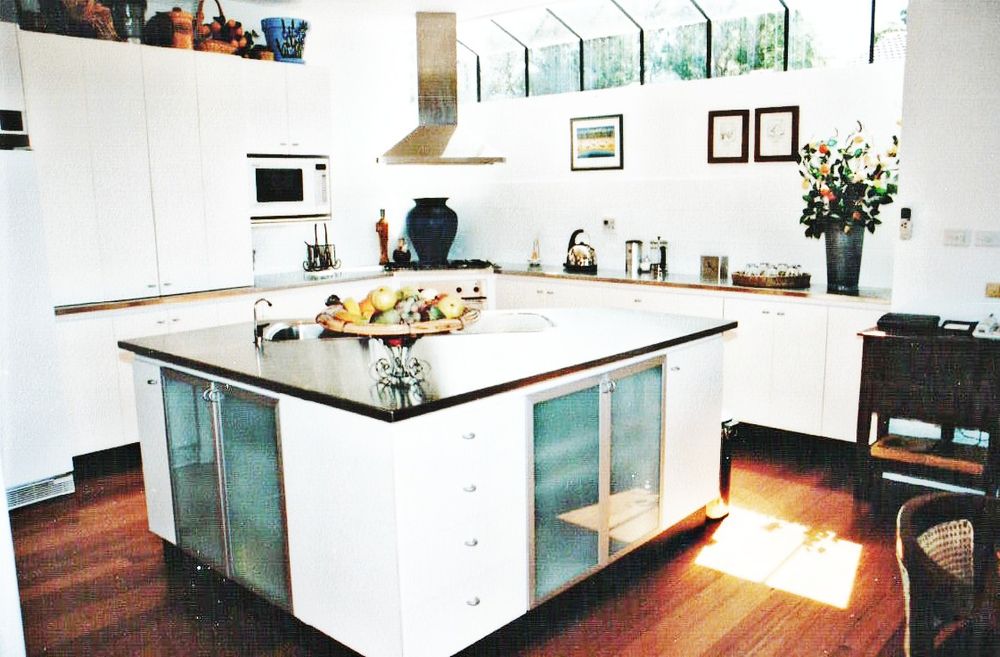

The Island bench which will be made to order, or have a go yourself....with a water filter installed, double basins with a sink mixer (possibly flexable) and a waste disposer......all of which you should be able to install yourself....and plumber to approve...

The twin dishwashers are next  to the stove, but consider making space for them also in your Island bench (maybe a better alternative)

installing roof vents

Island bench

island bench......these video's may help you

garbage disposal

fridge alcove....remember water for cold drinking water and ice tray....shute behind fridge back-wall

water line to refrigerator

installing kitchen cabinets ......laser level alternative .......use water level

installing gas line

south side gas

southside gas....hot water.....also to gas heater

gas... north side

Rinnai installation......of course water and gas will come from the ground area

about to remove old pole

try and separate gas, water and electrical lines....and internet if hard wired

front boundary
